Module gdalhelpers.functions.create_points_at_angles_distance

Functions

def create_points_at_angles_distance(input_points_ds, angles=None, distance=1, angles_specification_degrees=True, input_points_id_field=None)

Function that generates for every Feature in Layer in input_points_ds set of points at specified distance and angles.

Parameters

input_points_ds : ogr.DataSource

Input points, geometry of the layer has to be ogr.wkbPoint, ogr.wkbPoint25D, ogr.wkbLineStringM or ogr.wkbPointZM.

angles : list of float or None, optional

Angles at which the resulting points should be created. Default value is Nonewhich creates list containg integer values from 0 to 360. Createad with coomand np.arange(0, 360, step=1).tolist().

distance : float or int, optional

Distance at which the points should be created. Default value is 1.

angles_specification_degrees : bool, optional

Are the angles specified in degrees? Default values is True, if False the values are in radians.

input_points_id_field : str, optional

Name of ID (or other) field from input_points_ds that should be carried over the resulting DataSource.

Returns

ogr.DataSource

Virtual ogr.DataSource in memory with one layer (named points) containing the points.

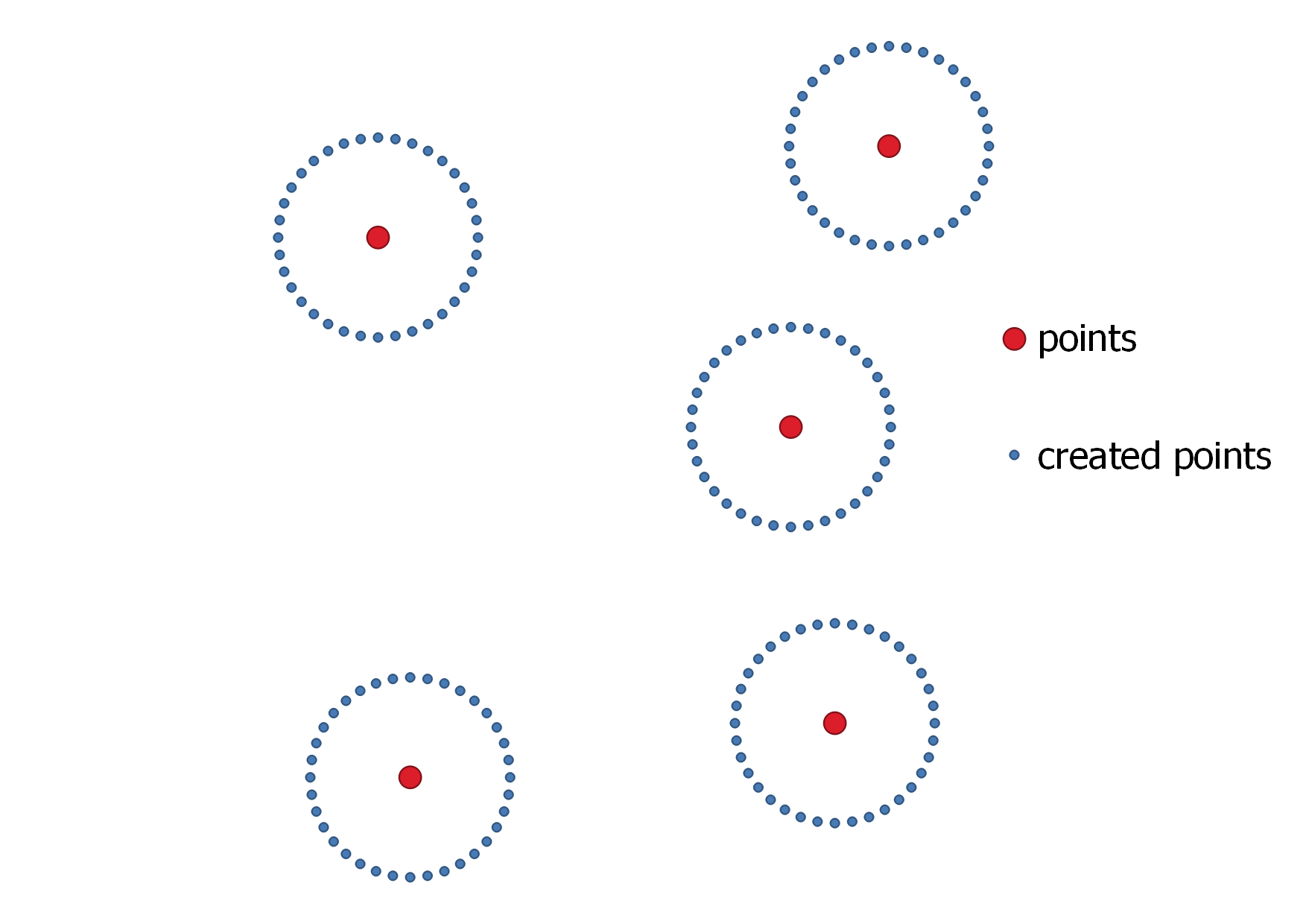

Example output

Following image shows

Raises

Various Errors can be raise while checking for validity of inputs.

Warns

UserWarning

If the field of given name (input_points_id_field) is not present or if its not of type ogr.OFTInteger.

Expand source code

def create_points_at_angles_distance(input_points_ds: ogr.DataSource,
                                     angles: List[float] = None,
                                     distance: Union[float, int] = 1,
                                     angles_specification_degrees: bool = True,
                                     input_points_id_field: str = None) -> ogr.DataSource:
    """
    Function that generates for every `Feature` in `Layer` in `input_points_ds` set of points at specified `distance`
    and `angles`.

    Parameters
    ----------
    input_points_ds : ogr.DataSource
        Input points, geometry of the layer has to be `ogr.wkbPoint, ogr.wkbPoint25D, ogr.wkbLineStringM` or
        `ogr.wkbPointZM`.

    angles : list of float or None, optional
        Angles at which the resulting points should be created. Default value is `None`which creates list containg
        integer values from 0 to 360. Createad with coomand `np.arange(0, 360, step=1).tolist()`.

    distance : float or int, optional
        Distance at which the points should be created. Default value is `1`.

    angles_specification_degrees : bool, optional
        Are the angles specified in degrees? Default values is `True`, if `False` the values are in radians.

    input_points_id_field : str, optional
        Name of ID (or other) field from `input_points_ds` that should be carried over the resulting DataSource.

    Returns
    -------
    ogr.DataSource
        Virtual `ogr.DataSource` in memory with one layer (named `points`) containing the points.

    Example output
    -------
        Following image shows

    .. image:: create_points_at_angles_distance.png

    Raises
    ------
    Various Errors can be raise while checking for validity of inputs.

    Warns
    -------
    UserWarning
        If the field of given name (`input_points_id_field`) is not present or if its not of type `ogr.OFTInteger`.
    """

    output_points_ds = datasource_helpers.create_temp_gpkg_datasource()

    datasource_checks.check_is_ogr_datasource(input_points_ds, "input_points_ds")

    input_points_layer = input_points_ds.GetLayer()

    layer_checks.check_is_layer_geometry_type(input_points_layer, "input_points_layer", [ogr.wkbPoint,
                                                                                         ogr.wkbPoint25D,
                                                                                         ogr.wkbLineStringM,
                                                                                         ogr.wkbPointZM])
    values_checks.check_value_is_zero_or_positive(distance, "distance")

    if angles is None:
        angles = np.arange(0, 360, step=1).tolist()

    if angles_specification_degrees:
        angles = [math.radians(x) - math.pi for x in angles]

    angles = list(map(values_checks.check_return_value_is_angle, angles, repeat("angles")))

    input_points_srs = input_points_layer.GetSpatialRef()

    if not layer_checks.does_field_exist(input_points_layer, input_points_id_field):
        input_points_id_field = None
        warnings.warn(
            "Field `{0}` does not exist in `{1}`. Defaulting to FID."
                .format(input_points_id_field,
                        os.path.basename(input_points_ds.GetDescription())),
            UserWarning
        )
    else:
        if not layer_checks.is_field_of_type(input_points_layer, input_points_id_field, ogr.OFTInteger):
            input_points_id_field = None
            warnings.warn(
                "Field `{0}` in `{1}` is not `Integer`. Defaulting to FID."
                    .format(input_points_id_field,
                            os.path.basename(input_points_ds.GetDescription())),
                UserWarning
            )

    if input_points_id_field is None:
        field_name_id = "input_point_FID"
    else:
        field_name_id = "input_point_ID"

    field_name_angle = "angle"

    layer_helpers.create_layer_points(output_points_ds, input_points_srs, "points")
    output_points_layer = output_points_ds.GetLayer()

    fields = {field_name_id: ogr.OFTInteger,
              field_name_angle: ogr.OFTReal}

    layer_helpers.add_fields_from_dict(output_points_layer, fields)

    output_points_def = output_points_layer.GetLayerDefn()

    for feature in input_points_layer:
        geom = feature.GetGeometryRef()

        if input_points_id_field is None:
            f_id = feature.GetFID()
        else:
            f_id = feature.GetField(input_points_id_field)

        for angle in angles:
            p = geometry_helpers.point_at_angle_distance(geom, distance, angle)

            output_point_feature = ogr.Feature(output_points_def)
            output_point_feature.SetGeometry(p)

            values = {field_name_id: f_id,
                      field_name_angle: angle}

            layer_helpers.add_values_from_dict(output_point_feature, values)

            output_points_layer.CreateFeature(output_point_feature)

    return output_points_ds
